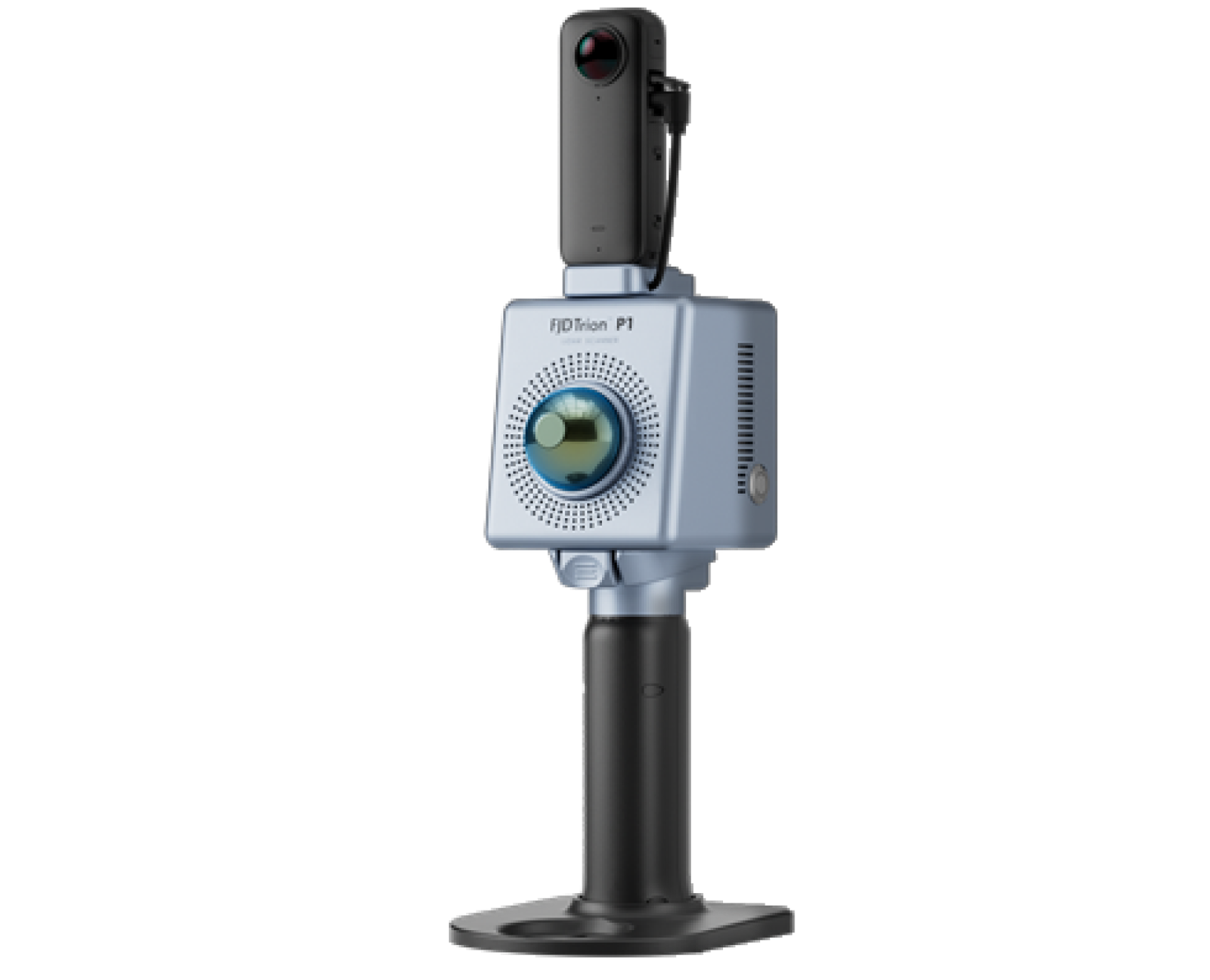

FJD Trion P1

Wherever you go, the P1 can capture what you see. It maps the environment in intricate detail, both indoors and out, from ornate architecture to hidden infrastructure, from forensic evidence to urban vegetation analysis. Powerful SLAM technology allows the P1 to operate in direct sunlight or even at night, in places that might be inaccessible with traditional methods.

Grab the FJD Trion P1 whenever you want a closer look at your world. Weighing just 1 kg, or just over 2 lbs., the P1 fits in a shoulder bag and can run all day with easy battery changes, recreating your environment in minutes.

Image 1

Optical Parameters

Laser Wavelength532 nm + 1064 nm
Laser ClassClass 3B
Beam Divergence~0.5 mrad
Depth Penetration2.5 Secchi depths
Pulse Repetition Rate50–300 kHz
Scanning FOVCross-track 40° / Along-track 28°
Angular Resolution0.001°
Ranging MethodPulse-phase
Scan Line Rate100 lines/s

System & Data

Integrated SensorsLiDAR + RGB + POS
Data FusionLand-water seamless point cloud
ColorizationRGB true color from onboard camera
PlatformOpen and integration-friendly for UAV, survey, and GIS platforms

Physical

Weight12 kg
Dimensions350 × 283 × 232 mm
Operating Temperature-10°C to +45°C
HumidityNon-condensing
Ingress ProtectionIP64

Power and Interface

Voltage24 VDC, 20–30 V input range
Power Consumption180 W
Data InterfaceTCP/IP, Gigabit Ethernet
GNSS AntennaSMA, internal-thread, male pin

Deliverables

Point CloudGeoreferenced, colorized
Water Surface1064 nm-derived
Water Bed / Bathymetry532 nm-derived
ImageryReal-scene RGB

Laser Measurement

Precision5 mm @ 50 m, 1σ
Returns≥7
Intensity8-bit

RGB Camera

Resolution12 MP
Focal Length18 mm
Field of View90° long × 67° short

POS

Attitude AccuracyR 0.03° / P 0.03° / H 0.01° RMS
Post-Processed AccuracyH 0.01 m / V 0.01 m
FJD Trion P1 Manual View

Easy Reality Capture
